ZC-450Z3C Automatic Edgebander Wood Banding Machine With Grooving Transfer Printing

    Buy cheap ZC-450Z3C Automatic Edgebander Wood Banding Machine With Grooving Transfer Printing from wholesalers

    Buy cheap ZC-450Z3C Automatic Edgebander Wood Banding Machine With Grooving Transfer Printing from wholesalers
    • Buy cheap ZC-450Z3C Automatic Edgebander Wood Banding Machine With Grooving Transfer Printing from wholesalers

    ZC-450Z3C Automatic Edgebander Wood Banding Machine With Grooving Transfer Printing

    Ask Lasest Price
    Model Number : ZC-450Z3C
    Brand Name : ZHONGCHI MACHINERY
    Certification : CE,ISO9001,SSL
    Price : Negotiable
    Delivery Time : 5-7 day
    Payment Terms : T/T etc.
    Supply Ability : 2000pieces/Year
    • Product Details
    • Company Profile

    ZC-450Z3C Automatic Edgebander Wood Banding Machine With Grooving Transfer Printing

    ZC-450Z3C Automatic edge banding machine with grooving and transfer printing


    Suitable for processing all kinds of MDF, particleboard, wood-based panels ASB panels, PVC panels, plexiglass panels, etc

    Equipped with PLC intelligent control system, which automatically switches to the stop heat insulation condition when the electric heating automation degree is high, and reduces the heating waiting time and the carbonization of glue.

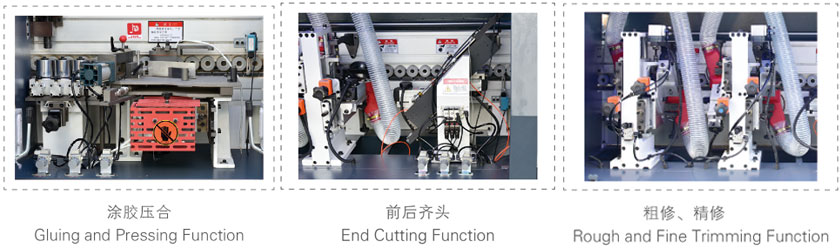

    Equipped with pre - milling cutter, double slotting function and automatic pressing function are added to make sealing edge adhesion stronger and more beautiful.
    Equipped with upper and lower stamping function products once formed.
    It is easy to adjust when the plate thickness changes.

    Technical Parameters

    Working thickness10-60mm
    Min. working width≥60mm
    Min. panel length≥160mm
    Feeding speed18-24m/min
    Ironing wheel diameter200mm
    Angle adjustment range90°
    Slotting power4kw*3
    Air pressure3.7kw
    Feeding motor30.5KW
    Voltage380v,50hz, 3phase
    Weight3200kg
    Overall size7200*900*1600mm
