    CE Woodworking Cabinet Edge Banding Machine Pvc Furniture Edge Banding Machine

    Ask Lasest Price
    Brand Name : ZHONGCHI MACHINERY
    Model Number : ZC450F
    Certification : CE,ISO9001,SSL
    Price : Negotiable
    Payment Terms : T/T etc.
    Supply Ability : 2000pieces/Year
    Delivery Time : 5-7 day
    • Product Details
    • Company Profile

    CE Woodworking Cabinet Edge Banding Machine Pvc Furniture Edge Banding Machine

    Full functions Automatic edge banding machine ZC450F

    Strong Body,Aluminum strong beam

    Electrical Up and Down

    Three speed control,Precision edge banding parts

    Parameter:

    Working thickness10-60mm
    Min. working width≥60mm
    Min. panel length≥160mm
    Feeding speed18-24m/min
    Tape thickness0.4-3mm
    Air pressure0.6Mpa
    Total power16.8KW
    Voltage380v,50hz, 3phase
    Power of main drive motor3.7KW
    Weight3000kg
    Overall size6800*1100*1600mm



    Detail Pictures


    2*2.2 kW premilling unit with 2 diamond cutters
    Premilling unit with activation controlled diamond cutters, rotating speed 12000 rpm, 2x2.2 kW (3 HP), max. depth of cut 2 mm, max. workpiece height 60 mm, premilling cutters with diamond cutters width 35-60mm; ensures right angled and chip free workpiece edges
    Gluing function
    requires only 20 minutes to reach operating temperature. The tool free quick change system guarantees quick cleaning and change over times when changing the glue or colour. The synchronised, fine adjustable glue roller ensures the right application amount of glue.

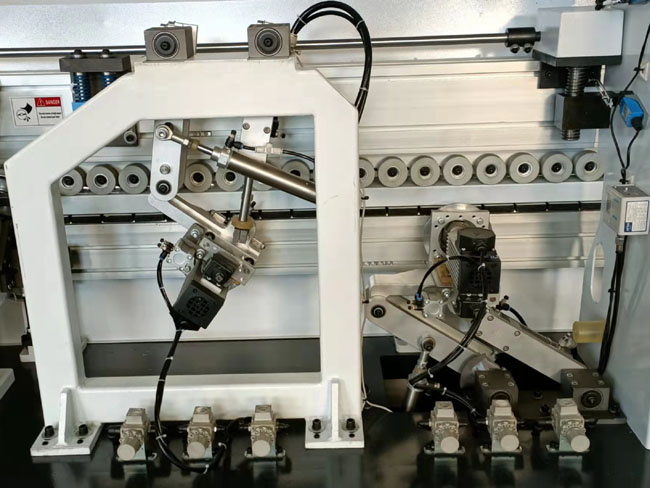

    End trimming function
    with two high frequency motors
    0.35 kW (1 HP); 12000 rpm; HW saw blades Z 24 D-100 x 20 x 3.2 mm,
    Rough trimming function
    2 high frequency motors for upper and lower edge with 0.75 kW (1 HP); 12000 rpm. With 2pcs 6 teeth flat cutters. The manual 2-axis position control of both height and depth ensures 100% repeatability. Edge belt thickness change by manual
    Fine trimming function
    2 high frequency motor for upper and lower edge with 0.75 kW (1 HP); 12000 rpm. With 2pcs 6 teeth R2 cutters. The manual 2-axis position control of both height and depth ensures 100% repeatability. Edge belt thickness change by manual.
    Corner Rounding function
    Corner rounding unit for soft and postforming workpieces for the processing of the ends of the panel with 0.4-3.0 mm edge material
    and 10-60 mm workpiece height, With 2pcs 0.37kw motors. Suitable for straight workpiece edges.

    Scraping Function
    mechanical adjustment for R=2mm
    Upper and lower radius scraper for the processing of 2 mm plastic edge material. with R2 cutter. Manually enabled and disabled. If customer has 3mm thickness edge belt will use R3 cutter
    Buffing function
    Through the two rotating cloth wheels, the processed panel is cleaned to make the end face of the edge banding more smooth and
    beautiful, and to keep the polishing wheel worn evenly.

    Direction for use

    Applicable products: solid wood panels, fibreboard, particleboard, MDF and other panels and other panel furniture Edge. Edge of the main PVC, polyester, melamine and wood, and so on.
    Achieve results: a high degree of automation, high efficiency, high precision and high aesthetics.
    Structural advantages: laser cutting steel plate base, a welded body made of solid deformation does not increase the stability of the machine to ensure that each processing department can work fine. Processing components imported motor and high- quality electrical components.
